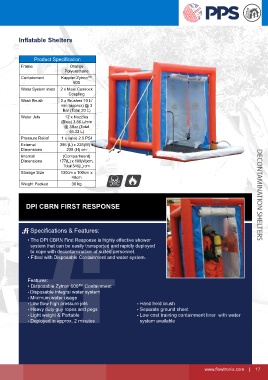

Page 17 - FT DECONTAMINATION SHELTERS

Inflatable Shelters Inflatable Shelters

Product Specification
Frame Orange
Polyurethane
Containment Kappler Zytron™
600
Water System Inlets 2 x Male Camlock
Coupling
Wash Brush 2 x Brushes 10 L/
min (approx) @ 3
Bar (Total 20 L)
Water Jets 12 x Nozzles
(Blue) 3.86 L/min
@ 3Bar (Total
46.32 L)
Pressure Relief 1 x valve 2.5 PSI
External 395 (L) x 225(W) x
Dimensions 235 (H) cm
Internal (Compartment)
Dimensions 177(L) x 190(W)cm,
Total 346(L) cm
Storage Size 130cm x 100cm x
40cm
Weight Packed 38 kg

DECAS CBRN DPI CBRN FIRST RESPONSE DECONTAMINATION SHELTERS

Specifications & Features: Specifications & Features:

• Decas CBRN is a highly effective shower system that can be • The DPI CBRN First Response is highly effective shower
easily transported & deployed to cope with decontamination system that can be easily transported and rapidly deployed
of ambulant or non-ambulant patients. to cope with decontamination of suited personnel.
• Fitted with Disposable Containment, water system & removable • Fitted with Disposable Containment and water system.
centre curtain allowing the system to be used as a two line or
single line system also allowing room for a conveyor.
• Has the ability to connect more than one unit together.
Features:
Features: • Disposable Zytron 600™ Containment
• Disposable Zytron 600™ Containment • Disposable integral water system • Disposable integral water system
• Dividing curtain for two-line operation • Minimum water usage • Minimum water usage
• 2 trigger spray guns • Guy ropes and pegs • Low flow high pressure jets • Hand held brush
• Separate ground sheet • Light weight • Heavy duty guy ropes and pegs • Separate ground sheet
• Deployed in approx 2 minutes • Low cost training containment liner with water • Light weight & Portable • Low cost training containment liner with water
system available • Deployed in approx. 2 minutes system available

www.flowtronix.com | 17
