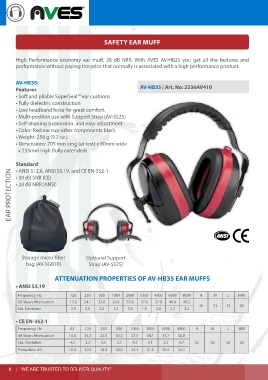

Page 8 - FT EAR PROTECTION

SAFETY EAR MUFF

High Performance economy ear muff, 28 dB NRR. With AVES AV-HB25 you get all the features and
performance without paying the price that normally is associated with a high performance product.

AV-HB35:
Features AV-HB35 | Art. No: 2536AV410
• Soft and pliable SuperSeal™ ear cushions
• Fully dielectric construction
• Low headband force for great comfort.
• Multi-position use with Support Strap (AV-SS25)
• Self-aligning suspension, and easy adjustment
• Color: Red ear cup other components black
• Weight: 258 g (9.2 oz.)
• Dimensions: 205 mm long (at rest) x 80mm wide
x 235mm high (fully extended)

Standard
• ANSI S12.6, ANSI S3.19, and CE EN-352-1
EAR PROTECTION • 28 dB NRR (ANSI)
• 30 dB SNR (CE)

Storage micro-fiber Optional Support
bag (AV-SGB30) Strap (AV-SS25)

ATTENUATION PROPERTIES OF AV-HB35 EAR MUFFS
• ANSI S3.19

Frequency, Hz 125 250 500 1000 2000 3150 4000 6300 8000 H M L NRR
dB Mean Attenuation 17.6 24.1 32.6 39.9 37.6 37.0 37.9 40.0 40.2
36 31 23 28
Std. Deviation 2.0 2.0 2.4 3.2 2.6 1.9 2.6 2.2 2.4

• CE EN-352-1
Frequency, Hz 63 125 250 500 1000 2000 4000 8000 H M L SNR
dB Mean Attenuation 14.6 14.2 22.3 32.2 37.4 34.1 33.7 36.8
Std. Deviation 4.2 3.7 3.5 3.2 4.3 3.1 3.2 2.7 32 28 18 30
Protection, dB 10.4 10.5 18.8 29.0 33.1 31.0 30.5 34.1
