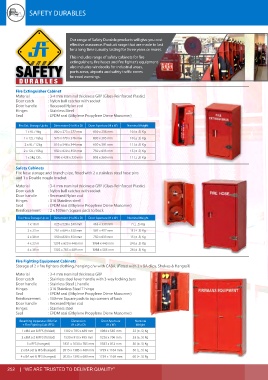

Page 252 - FT SAFETY CATALOG 2017-2018

SAFETY DURABLES SAFETY DURABLES

Our range of Safety Durable products will give you cost
TM
effective assurance. Product range that are made to last
for a long time (usually lasting for three years or more).
This includes range of safety cabinets for fire
extinguishers, fire hoses and fire fighter’s equipment,
SAFETY also includes windsocks for industrial areas,
ports areas, airports and safety traffic cones
DURABLES for road warnings.

Fire Extinguisher Cabinet
Material : 3-4 mm nominal thickness GRP (Glass-Reinforced Plastic)
Door catch : Nylon ball catcher with socket
Door handle : Recessed Nylon rod
Hinges : Stainless Steel
Seal : EPDM seal (Ethylene Propylene Diene Monomer)

Fire Ext. Storage Up to Dimension (H x W x D) Door Aperture (H x W) Nominal Weight
1 x 9L / 9kg 800 x 373 x 277 mm 659 x 236 mm 10 (± .5) Kg
1 x 12L / 12kg 970 x 470 x 346 mm 800 x 305 mm 10 (± .5) Kg
2 x 9L / 12kg 816 x 548 x 344 mm 650 x 391 mm 11 (± .5) Kg
2 x 12L / 12kg 950 x 820 x 350 mm 750 x 633 mm 15 (± .5) Kg
1080 x 438 x 335 mm 895 x 260 mm 11 (± .5) Kg
1 x 5kg CO 2
Safety Cabinets
Fire hose storage and branch pipe, fitted with 2 x stainless steel hose pins
and 1 x Double nozzle bracket

Material : 3-4 mm nominal thickness GRP (Glass-Reinforced Plastic)
Door catch : Nylon ball catcher with socket
Door handle : Recessed Nylon rod
Hinges : 316 Stainless steel
Seal : EPDM seal (Ethylene Propylene Diene Monomer)
Reinforcement : 2 x 100mm Square pads to back
Fire Hose Storage Up to Dimension (H x W x D) Door Aperture (H x W) Nominal Weight
1 x 18 m 625 x 528 x 240 mm 463 x 330 mm 7 (± .5) Kg
2 x 23 m 761 x 684 x 330 mm 587 x 487 mm 11 (± .5) Kg
2 x 30 m 950 x 820 x 350 mm 750 x 633 mm 15 (± .5) Kg
4 x 23 m 1291 x 620 x 448 mm 1064 x 440 mm 24 (± .5) Kg
4 x 30 m 1302 x 785 x 489 mm 1084 x 585 mm 26 (± .5) Kg

Fire Fighting Equipment Cabinets
Storage of 2 x fire fighters clothing, hanging c/w with CABA. (Fitted with 2 x BA clips, Shelves & Hangrail)
Material : 3-4 mm nominal thickness GRP
Door catch : Stainless steel lever handle with 3-way locking bars
Door handle : Stainless Steel L handle
Hinges : 316 Stainless Steel T hinge
Seal : EPDM seal (Ethylene Propylene Diene Monomer)
Reinforcement : 150mm Square pads to top corners of back
Door handle : Recessed Nylon rod
Hinges : Stainless steel
Seal : EPDM seal (Ethylene Propylene Diene Monomer)
Breathing Apparatus (BA) Set Dimension Door Aperture Nominal
+ Fire Fighting Suit (FFS) (H x W x D) (H x W) Weight
1 x BA set & FFS (folded) 1302 x 785 x 489 mm 1084 x 585 mm 22 (± .5) Kg
2 x BA set & FFS (folded) 1530 x 910 x 495 mm 1236 x 706 mm 33 (± .5) Kg
5 x FFS (hanged) 1831 x 1034 x 785 mm 1583 x 812 mm 50 (± .5) Kg
2 x BA set & FFS (hanged) 2015 x 1385 x 460 mm 1739 x 1164 mm 50 (± .5) Kg
4 x BA set & FFS (hanged) 2025 x 1395 x 600 mm 1739 x 1160 mm 60 (± .5) Kg

252 | “WE ARE TRUSTED TO DELIVER QUALITY”
