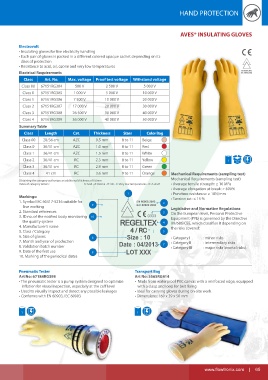

Page 65 - FT SAFETY CATALOG 2017-2018

HAND PROTECTION HAND PROTECTION

AVES® INSULATING GLOVES

Electrovolt
• Insulating gloves for live electricity handling
• Each pair of gloves is packed in a different colored opaque sachet depending on its
class of protection
• Resistance to acid, oil, ozone and very low temperatures
Electrical Requirements EN 60903:2003
IEC 60903:2002
Class Art. No. Max. voltage Proof test voltage Withstand voltage
Class 00 67151RG304 500 V 2 500 V 5 000 V
Class 0 67151RG305 1 000 V 5 000 V 10 000 V
Class 1 67151RG306 7 500 V 10 000 V 20 000 V
Class 2 67151RG307 17 000 V 20 000 V 30 000 V
Class 3 67151RG308 26 500 V 30 000 V 40 000 V
Class 4 67151RG309 36 000 V 40 000 V 50 000 V
Summary Table
Class Length Cat. Thickness Sizes Color Bag
Class 00 28/36 cm AZC 0.5 mm 8 to 11 Beige
Class 0 36/41 cm AZC 1.0 mm 8 to 11 Red
Class 1 36/41 cm AZC 1.5 mm 8 to 11 White
Class 2 36/41 cm RC 2.3 mm 8 to 11 Yellow 1 10
Class 3 36/41 cm RC 2.9 mm 8 to 11 Green
Class 4 41 cm RC 3.6 mm 9 to 11 Orange Mechanical Requirements (sampling test)
Mechanical Requirements (sampling test)
Obtaining the category authorizes an additional thickness of 0.6mm
Index of category letters : A: Acid - Z: Ozone - H: Oil - C: Very low temperatures - R: A+Z+H • Average tensile strength: ≥ 16 MPa
• Average elongation at break: ≥ 600%
1 • Puncture resistance: ≥ 18N/mm
Markings: • Tension set: ≤ 15 %
1. Symbol IEC 60417-5216 suitable for EN 60903:2003 2
live working 9 IEC 60903:2002 Legislative and Normative Regulations
2. Standard references 3 On the European level, Personal Protective
3. ID no. of the notified body monitoring 10 Equipment (PPE) is governed by the Directive
the quality system 4 89/686/CEE, which classifies it depending on
4. Manufacturer’s name the risks covered:
5. Class / Category 5
6. Size of gloves 6 Size : 10 • Category I : minor risks
7. Month and year of production • Category II : intermediary risks
8. Validation batch number Date : 04/2013 7 • Category III : major risks (mortal risks).
9. Date of the first use 8 LOT XXX
10. Marking of the periodical dates

Pneumatic Tester Transport Bag
Art No: 67184RG398 Art No: 5565RG414
• The pneumatic tester is a pump system designed to optimize • Made from waterproof PVC canvas with a reinforced edge, equipped
inflation for visual inspection, especially at the cuff level with a clasp and loop for belt fixing
• Used to visually inspect and detect any possible leakages • Ideal for carrying gloves during on-site work
• Conforms with EN 60903, IEC 60903 • Dimensions: 160 x 39 x 50 mm

1 1
