Page 10 - FT DECONTAMINATION SHELTERS

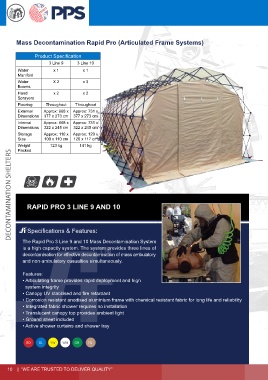

Mass Decontamination Rapid Pro (Articulated Frame Systems) Rapid Pro Shelters

Product Specification
3 Line 9 3 Line 10
Water x 1 x 1
Manifold
Water X 2 x 3
Booms
Hand x 2 x 2
Sprayers
Flooring Throughout Throughout
External Approx: 668 x Approx: 731 x
Dimensions 377 x 273 cm 377 x 273 cm
Internal Approx: 668 x Approx: 731 x
Dimensions 322 x 245 cm 322 x 245 cm
Storage Approx: 110 x Approx: 120 x
Size 100 x 110 cm 120 x 117 cm
Weight 123 kg 141 kg
Packed
DECONTAMINATION SHELTERS

Rapid Pro Shelter 35-5

RAPID PRO 3 LINE 9 AND 10 RAPID PRO SHELTER 35-5 and 35-7

Specifications & Features: Specifications & Features:

The Rapid Pro 3 Line 9 and 10 Mass Decontamination System • RP 35 shelter ranges are medium sized rapid deployment shelters in highly portable & light-weight package.
is a high capacity system. The system provides three lines of • The standard models have multiple entry and exit points with side mesh windows and cover flaps.
decontamination for effective decontamination of mass ambulatory • For casualty management, surge capacity, temporary accommodation, situation management and other
and non-ambulatory casualties simultaneously. mobile shelter needs.
• Available in two standard lengths: RP35-5 & RP35-7.
Features: • Require four persons for deployment
• Articulating frame provides rapid deployment and high Features:
system integrity • Articulating internal frame with locking straps allows high speed deployment with high system integrity
• Canopy UV stabilised and fire retardant • Highly corrosion resistant construction grade aluminium frame with alochrome treatment and polyester
• Corrosion resistant anodised aluminium frame with chemical resistant fabric for long life and reliability powder coated tubes
• Integrated fabric shower requires no installation • Highly flexible, tear resistant, UV stabilized and fire retardant fabric available in a choice of colours
• Translucent canopy top provides ambient light • Windows provide warm-weather, ventilation and ambient lighting. It also has 2 panelled zipped end doors.
• Ground sheet included • Standard extra features available: Turn up ground sheet, Side Banners, Clear window covers POA.
• Active shower curtains and shower tray

RD BL YW WH GR TN
