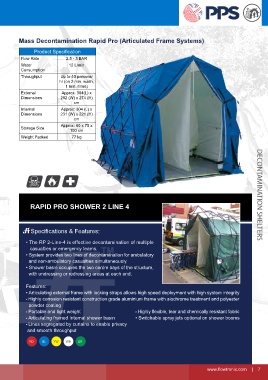

Mass Decontamination Rapid Pro (Articulated Frame Systems)  Mass Decontamination Rapid Pro (Articulated Frame Systems)

                Product Specification

          Flow Rate           2.5 - 3 BAR
          Water                 12 L/min
          Consumption
          Throughput        Up to 40 persons/
                           hr (on 2 min. wash,
                              1 min. rinse)
          External          Approx: 304(L) x
          Dimensions        282 (W) x 274 (H)
                                  cm
          Internal          Approx: 304 (L) x
          Dimensions        231 (W) x 221 (H)
                                  cm
                            Approx: 60 x 70 x
          Storage Size
                                100 cm
          Weight Packed          77 kg

















 RAPID PRO SHOWER 1 LINE 2  RAPID PRO SHOWER 2 LINE 4                                                              DECONTAMINATION SHELTERS





 Specifications & Features:   Specifications & Features:

 • The RP 1-Line-2 shower is effective decontamination of single  • The RP 2-Line-4 is effective decontamination of multiple
   casualties or emergency responders.     casualties or emergency teams.
 • The shelter incorporates a tall profile to accommodate individuals  • System provides two lines of decontamination for ambulatory
   or emergency responders wearing fully encapsulating chemical    and non-ambulatory casualties simultaneously.
   suits.    • Shower basin occupies the two centre bays of the structure,
               with undressing or redressing areas at each end.
 Features:
 • Articulating external frame with locking straps allows high  Features:
   speed deployment with high system integrity  • Articulating external frame with locking straps allows high speed deployment with high system integrity
 • Aircraft grade aluminium frame with highly corrosion resistant alochrome treatment and polyester  • Highly corrosion resistant construction grade aluminium frame with alochrome treatment and polyester
   powder coating    powder coating
 • Portable and light weight  • Portable and light weight      • Highly flexible, tear and chemically resistant fabric
 • Highly flexible, tear and chemically resistant fabric available in a choice of colours  • Articulating framed Internal shower basin   • Switchable spray jets optional on shower booms
 • Articulating framed Internal shower basin  • Lines segregated by curtains to enable privacy
              and smooth throughput

              RD    BL   YW   WH    GR
