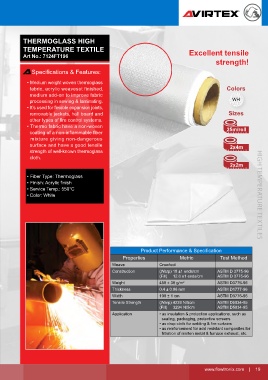

Page 19 - FT HIGH TEMPERATURE TEXTILE

THERMOGLASS HIGH THERMOGLASS HIGH
TEMPERATURE TEXTILE Ideal for low and TEMPERATURE TEXTILE Excellent tensile

Art No.: 7124FT197 Art No.: 7124FT196
high temperatures! strength!

Specifications & Features: Specifications & Features:

• Thermoglass have a non-woven • Medium weight woven thermoglass
coating of a non-inflammable fiber Colors fabric, acrylic weaveset finished, Colors
mixture providing a physiological medium add-on to improve fabric
non-dangerous surface and have a WH processing in sewing & laminating. WH
good tensile strength of well-known • It’s used for flexible expansion joints,
thermoglass cloth. Sizes removable jackets, hull board and Sizes
• High quality temperature resistant other types of fire control systems.
materials for many applications on 50m/roll • Thermo fabric have a non-woven 25m/roll
basis of outstanding technological coating of a non-inflammable fiber
standards. mixture giving non-dangerous
• Have excellent technical properties 2x4m surface and have a good tensile 2x4m
and constant quality strength of well-known thermoglass
• Ideal material in the application of cloth.
low and high temperatures. 2x2m 2x2m

• Fiber Type: Thermoglass
• Fiber Type: E-Glass - Thermoglass • Finish: Acrylic finish
• Finish: Acrylic finish • Service Temp.: 550°C
• Service Temp.: 550°C • Color: White HIGH TEMPERATURE TEXTILES
• Color: White

Product Performance & Specification
Properties Metric Test Method
Weave Crowfoot
Construction (Warp) 18 ±1 ends/cm ASTM D 3775-96
(Fill) 12.6 ±1 ends/cm ASTM D 3775-96
Weight 450 ± 30 g/m 2 ASTM D3776-96
Thickness 0.4 ± 0.06 mm ASTM D1777-96
Width 100 ± 1 cm ASTM D3776-96
Tensile Strength (Warp) 4239 N/5cm ASTM D5034-95
(Fill) 3294 N/5cm ASTM D5034-95
Application • as insulation & protection applications, such as
sealing, packaging, protective screens
• as drop cloth for welding & fire curtains
• as reinforcement for acid resistant composites for
filtration of molten metal & furnace exhaust, etc.

www.flowtronix.com | 19
