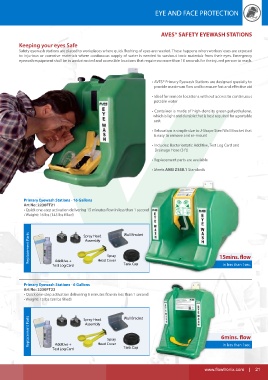

Page 21 - FT SAFETY CATALOG 2017-2018

EYE AND FACE PROTECTION EYE AND FACE PROTECTION

AVES® SAFETY EYEWASH STATIONS

Keeping your eyes Safe
Safety eyewash stations are placed to workplaces where quick flushing of eyes are needed. These happens when workers’ eyes are exposed
to injurious or corrosive materials where continuous supply of water is needed to washout toxic materials from their eyes. Emergency
eyewash equipment shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach.

• AVES® Primary Eyewash Stations are designed specially to
provide maximum flow and to ensure fast and effective aid

• Ideal for remote locations without access to continuous
potable water

• Container is made of high-density green polyethylene,
which is light and durable that is best required for a portable
unit
• Relocation is simple due to J-Shape Steel Wall Bracket that
is easy to remove and re-mount

• Includes: Bacteriostatic Additive, Test Log Card and
Drainage Hose (3 ft)

• Replacement parts are available
• Meets ANSI Z358.1 Standards

Primary Eyewash Stations - 16 Gallons
Art No: 2230FT21
• Quick one-step activation delivering 15 minutes flow in less than 1 second
• Weight: 16 lbs (145 lbs filled)

Replacement Parts Spray Head Spray Wall Bracket 15mins. flow
Assembly

Additive +
Test Log Card Head Cover Tank Cap in less than 1sec.

Primary Eyewash Stations - 6 Gallons
Art No: 2230FT22
• Quick one-step activation delivering 6 minutes flow in less than 1 second
• Weight: 13 lbs (58 lbs filled)

Replacement Parts Spray Head Spray Wall Bracket 6mins. flow
Assembly

Additive +
Test Log Card Head Cover Tank Cap in less than 1sec.
