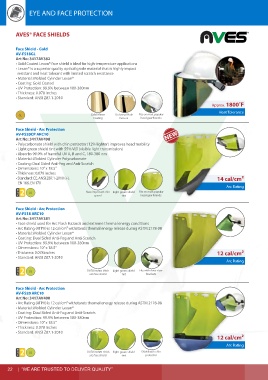

Page 22 - FT SAFETY CATALOG 2017-2018

EYE AND FACE PROTECTION

AVES® FACE SHIELDS

Face Shield - Gold
AV-FS18GL
Art No: 3417AV382
• Gold Coated Lexan® face shield is ideal for high temperature applications
• Lexan® is a superior quality optical grade material that is highly impact
resistant and heat tolerant with limited scratch resistance
• Material: Molded Cylinder Lexan®
• Coating: Gold Coated
• UV Protection: 99.9% between 180-380nm
• Thickness: 0.078 inches
• Standard: ANSI Z87.1-2010
Approx. 1800˚F
Heat Tolerance
GL Gold Mirror Universal Hole Fits on most popular
Coating Pattern head gear brands

Face Shield - Arc Protection
AV-FS20CP ARC10
Art No: 3417AV498
• Polycarbonate shield with chin protector (12% lighter) improves head mobility
• Light green shield tint with 55% VLT (visible light transmission)
• Absorbs 99.9% of harmful UV A, B and C, 180-380 nm
• Material: Molded Cylinder Polycarbonate
• Coating: Dual Sided Anti-Fog and Anti-Scratch
• Dimensions: 10” x 18.5”
• Thickness: 0.078 inches
• Standard: CE, ANSI Z87.1-2010 (+), 14 cal/cm²
EN 166, EN 170
Arc Rating
LG New improved chin Light green shield Fits on most popular
guard tint head gear brands

Face Shield - Arc Protection
AV-FS18 ARC10
Art No: 3417AV381
• Face shield used for Arc Flash Hazards and extreme thermal energy conditions
• Arc Rating (ATPV) is 12 cal/cm² withstands thermal energy release during ASTM 2178-08
• Material: Molded Cylinder Lexan®
• Coating: Dual Sided Anti-Fog and Anti-Scratch
• UV Protection: 99.9% between 180-380nm
• Dimensions: 10” x 18.5”
• Thickness: 0.078 inches 12 cal/cm²
• Standard: ANSI Z87.1-2010
Arc Rating

LG 0.078 inches thick Light green shield Fits with Aves visor
arc face shield tint brackets

Face Shield - Arc Protection
AV-FS20 ARC10
Art No: 3417AV400
• Arc Rating (ATPV) is 12 cal/cm² withstands thermal energy release during ASTM 2178-08
• Material: Molded Cylinder Lexan®
• Coating: Dual Sided Anti-Fog and Anti-Scratch
• UV Protection: 99.9% between 180-380nm
• Dimensions: 10” x 18.5”
• Thickness: 0.078 inches
• Standard: ANSI Z87.1-2010
12 cal/cm²

Arc Rating
LG 0.078 inches thick Light green shield Shield with chin
arc face shield tint protector

22 | “WE ARE TRUSTED TO DELIVER QUALITY”
