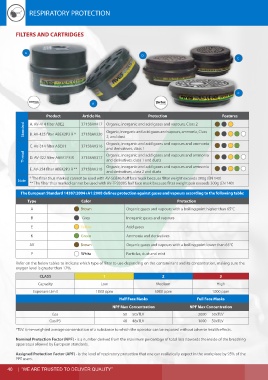

Page 40 - FT SAFETY CATALOG 2017-2018

RESPIRATORY PROTECTION

FILTERS AND CARTRIDGES

A
D
E

C

B

Product Article No. Protection Features

Standard A. AV-414 filter ABE2 37158AV417 Organic, inorganic and acid gases and vapours, Class 2
Organic, inorganic and acid gases and vapours, ammonia, Class
B. AV-425 filter ABEK2P3 R *
37158AV320
2, and dust
Organic, inorganic and acid gases and vapours and ammonia
C. AV-314 filter ABEK1 37158AV316
and derivatives, class 1
Thread D. AV-322 filter ABEK1P3 R 37158AV317 Organic, inorganic and acid gases and vapours and ammonia
and derivatives, class 1 and dusts
Organic, inorganic and acid gases and vapours and ammonia
E. AV-354 filter ABEK2P3 R ** 37158AV318
and derivatives, class 2 and dusts
* The filter thus marked cannot be used with AV-SGE46 half face mask because filter weight exceeds 300g (EN 140)
Note
** The filter thus marked cannot be used with AV-TP2000S half face mask because filter weight pair exceeds 300g (EN 140)
The European Standard 14387:2004+A1:2008 defines protection against gases and vapours according to the following table:
Type Color Protection
A Brown Organic gases and vapours with a boiling point higher than 65°C

B Grey Inorganic gases and vapours
E Yellow Acid gases

K Green Ammonia and derivatives
AX Brown Organic gases and vapours with a boiling point lower than 65°C

P White Particles, dust and mist
Refer on the below tables to indicate which type of filter to use depending on the contaminant and its concentration, making sure the
oxygen level is greater than 17%.
CLASS 1 2 3
Capacity Low Medium High
Exposure Limit 1000 ppm 5000 ppm 1000 ppm
Half Face Masks Full Face Masks
NPF Max Concentration NPF Max Concentration
Gas 50 50xTLV 2000 50xTLV
Gas P3 48 48xTLV 1000 50xTLV
*TLV: time-weighted average concentration of a substance to which the operator can be exposed without adverse health effects.

Nominal Protection Factor (NPF) - is a number derived from the maximum percentage of total loss (towards the inside of the breathing
apparatus) allowed by European standards.

Assigned Protection Factor (APF) - is the level of respiratory protection that one can realistically expect in the workplace by 95% of the
PPE users.
