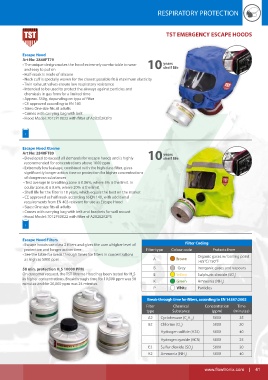

Page 41 - FT SAFETY CATALOG 2017-2018

RESPIRATORY PROTECTION RESPIRATORY PROTECTION

TST EMERGENCY ESCAPE HOODS

Escape Hood
Art No: 2840FT79
• The unique design makes the hood extremely comfortable to wear years
and easy to put on 10 shelf life
• Half-mask is made of silicone
• Neck cuff is specially woven for the closest possible fit & maximum elasticity
• Twin exhaust valves ensure low respiratory resistance
• Intended to be used to protect the airways against particles and
chemicals in gas form for a limited time
• Approx. 550g, depending on type of filter
• CE approved according to EN 140
• Sizes: One size fits all adults
• Comes with carrying bag with belt
• Hood Model: 7012P10022 with filter of A2B2E2K2P3

1

Escape Hood Xtreme
Art No: 2840FT89 years
• Developed to exceed all demands for escape hoods and is highly 10 shelf life
recommended for concentrations above 1000 ppm
• Extremely low leakage, combined with the high class filter, gives
significantly longer action time or protection for higher concentrations
of dangerous substances
• Test average in breathing zone is 0.06%, where 5% is the limit. In
ocular zone, it is 0.6%, where 20% is the limit
• Shelf life for the filter is 10 years, which equals the best on the market
• CE approved as half mask according to EN 140, with additional
requirements from EN 403 relevant for use as Escape Hood
• Sizes: One size fits all adults
• Comes with carrying bag with belt and brackets for wall mount
• Hood Model: 7012P50022 with filter of A2B2E2K2P3

1

Escape Hood Filters
• Escape hoods use class 2 filters and gives the user a higher level of Filter Coding
protection and longer action time Filter type Colour code Protects from
• See the table for break through times for filters in concentrations Organic gases w/ boiling point
as high as 5000 ppm A Brown >65°C/150°F

58 min. protection H S 10000 PPM B Grey Inorganic gases and vapours
2
On customer request, the TST Xtreme Hood has been tested for H S E Yellow Sulphuric dioxide (SO )
2
in higher concentrations. Breakthrough time for 10,000 ppm was 58 K Green Ammonia (NH ) 2
minutes and for 20,000 ppm was 24 minutes. 3
P White Particles
Break-through time for filters, according to EN 14387:2002
Filter Chemical Concentration Time
type Substance (ppm) (minutes)
A2 Cyclohexane (C H ) 5000 35
6 12
B2 Chlorine (Cl ) 5000 20
2
Hydrogen sulfide (H2S) 5000 40
Hydrogen cyanide (HCN) 5000 25
E2 Sulfur dioxide (SO ) 5000 20
2
K2 Ammonia (NH ) 5000 40
3
