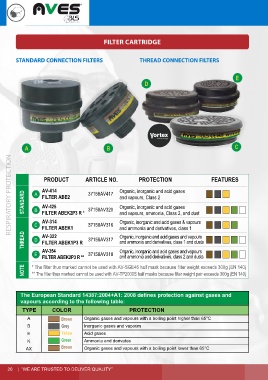

Page 20 - FT RESPIRATORY PROTECTION

FILTER CARTRIDGE

STANDARD CONNECTION FILTERS THREAD CONNECTION FILTERS

E
D

A B C

RESPIRATORY PROTECTION

PRODUCT ARTICLE NO. PROTECTION FEATURES

AV-414 37158AV417 Organic, inorganic and acid gases
A
STANDARD B AV-425 37158AV320 and vapours, Class 2
FILTER ABE2
Organic, inorganic and acid gases
FILTER ABEK2P3 R *
AV-314 and vapours, ammonia, Class 2, and dust
Organic, inorganic and acid gases & vapours
C FILTER ABEK1 37158AV316 and ammonia and derivatives, class 1
THREAD D AV-322 37158AV317 Organic, inorganic and acid gases and vapours
and ammonia and derivatives, class 1 and dusts
FILTER ABEK1P3 R
E AV-354 37158AV318 Organic, inorganic and acid gases and vapours
and ammonia and derivatives, class 2 and dusts
FILTER ABEK2P3 R **
NOTE * The filter thus marked cannot be used with AV-SGE46 half mask because filter weight exceeds 300g (EN 140)
** The filter thus marked cannot be used with AV-TP2000S half masks because filter weight pair exceeds 300g (EN 140)

vapours according to the following table:

TYPE COLOR PROTECTION
A Brown Organic gases and vapours with a boiling point higher than 65°C
B Grey Inorganic gases and vapours

E Yellow Acid gases
K Green Ammonia and derivates
AX Brown Organic gases and vapours with a boiling point lower than 65°C
