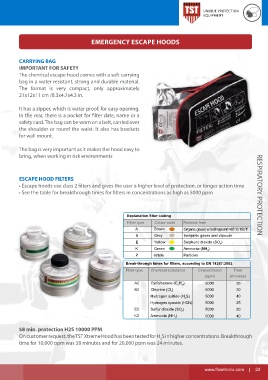

Page 23 - FT RESPIRATORY PROTECTION
P. 23

UNIQUE PROTECTION
                                                                                           EQUIPMENT




                                          EMERGENCY ESCAPE HOODS




          CARRYING BAG
          IMPORTANT FOR SAFETY
          The chemical escape hood comes with a soft carrying
          bag in a water resistant, strong and durable material.
          The format is very compact, only approximately
          21x12x11 cm /8.3x4.7x4.3 in.


          It has a zipper, which is water proof, for easy opening.
          In the rear, there is a pocket for filter date, name or a
          safety card. The bag can be worn on a belt, carried over
          the shoulder or round the waist. It also has brackets
          for wall mount.

          The bag is very important as it makes the hood easy to
          bring, when working in risk environments




          ESCAPE HOOD FILTERS
          • Escape hoods use class 2 filters and gives the user a higher level of protection, or longer action time
          • See the table for breakthrough times for filters in concentrations as high as 5000 ppm                 RESPIRATORY PROTECTION





                                                         Explanation filter coding
                                                          Filter type  Colour code  Protects from
                                                             A       Brown         Organic gases w boilingpoint >65°C/150°F
                                                             B       Grey          Inorganic gases and vapours
                                                             E       Yellow        Sulphuric dioxide (SO )
                                                                                                   2
                                                             K       Green         Ammonia (NH )
                                                                                             3
                                                             P       White         Particles
                                                         Break-through times for filters, according to EN 14387:2002
                                                         Filter type  Chemical substance  Concentration  Time
                                                                                            (ppm)      (minutes)
                                                             A2     Cyclohexane (C H )      5000          35
                                                                                6
                                                                                  12
                                                             B2     Chlorine (Cl )          5000          20
                                                                             2
                                                                    Hydrogen sulfide (H S)   5000          40
                                                                                   2
                                                                    Hydrogen cyanide (HCN)  5000          25
                                                             E2     Sulfur dioxide (SO )    5000          20
                                                                                  2
                                                             K2     Ammonia (NH )           5000          40
                                                                               3
          58 min. protection H2S 10000 PPM
          On customer request, the TST Xtreme Hood has been tested for H S in higher concentrations. Breakthrough
                                                                        2
          time for 10,000 ppm was 58 minutes and for 20,000 ppm was 24 minutes.
