Page 11 - FT SAFETY DURABLES

TM
SAFETY
DURABLES

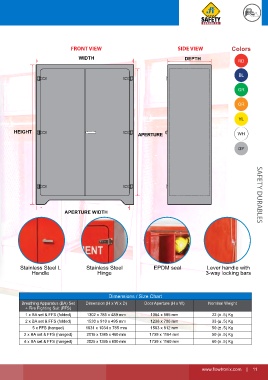

FIRE FIGHTING FRONT VIEW SIDE VIEW Colors

EQUIPMENT CABINET
WIDTH DEPTH RD

• Specifications & Features: BL

• Engineered to your specification
and excellent weather protection GR
• Have an attractive and compact
design with universal high quality
standards OR
• Storage of 2 firefighters clothing,
CABA, and other equipments YL
• Fitted with clips, shelves & hangrail
• Material: 3-4 mm nominal thickness
GRP HEIGHT APERTURE WH
• Door catch: Stainless steel lever
handle with 3-way locking bars GY
• Door handle: Stainless Steel L
handle
• Hinges: 316 Stainless Steel T
• Seal: EPDM seal (Ethylene
Propylene Diene Monomer)
• Reinforcement: 150mm² pads to top
corners of back
• Optional: Cabinet dimensions and SAFETY DURABLES
specification can be changed to meet
your requirements
APERTURE WIDTH

Stainless Steel L Stainless Steel EPDM seal Lever handle with
Handle Hinge 3-way locking bars

Dimensions / Size Chart
Breathing Apparatus (BA) Set Dimension (H x W x D) Door Aperture (H x W) Nominal Weight
+ Fire Fighting Suit (FFS)
1 x BA set & FFS (folded) 1302 x 785 x 489 mm 1084 x 585 mm 22 (± .5) Kg
2 x BA set & FFS (folded) 1530 x 910 x 495 mm 1236 x 706 mm 33 (± .5) Kg
5 x FFS (hanged) 1831 x 1034 x 785 mm 1583 x 812 mm 50 (± .5) Kg
2 x BA set & FFS (hanged) 2015 x 1385 x 460 mm 1739 x 1164 mm 50 (± .5) Kg
4 x BA set & FFS (hanged) 2025 x 1395 x 600 mm 1739 x 1160 mm 60 (± .5) Kg

www.flowtronix.com | 11
