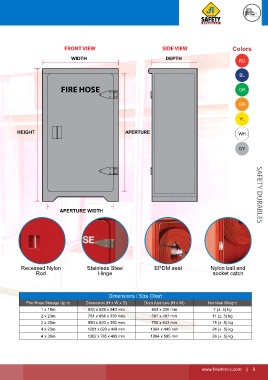

FIRE HOSE REEL FRONT VIEW SIDE VIEW Colors

CABINET
WIDTH DEPTH
RD
• Specifications & Features: BL

• Have an attractive and compact
design with universal high quality FIRE HOSE GR
standards
• Designed to protect fire hose of all
types, size, and lengths OR
• Quality of workmanship and finishes
• Fire hose storage and branch pipe YL
• Fitted with 2 x stainless steel hose
pins HEIGHT APERTURE
• 1 x Double nozzle bracket WH
• Material: 3-4 mm nominal thickness
GRP GY
• Door catch: Nylon ball and socket
catch
• Door handle: Recessed Nylon rod
• Hinges: 316 Stainless steel
• Seal: EPDM seal (Ethylene
Propylene Diene Monomer)
• Reinforcement: 2 x 100mm Square
pads to back SAFETY DURABLES
• Optional: Cabinet dimensions and
specification can be changed to meet
your requirements APERTURE WIDTH

Recessed Nylon Stainless Steel EPDM seal Nylon ball and
Rod Hinge socket catch

Dimensions / Size Chart
Fire Hose Storage Up to Dimension (H x W x D) Door Aperture (H x W) Nominal Weight
1 x 18m 625 x 528 x 240 mm 463 x 330 mm 7 (± .5) kg
2 x 23m 761 x 684 x 330 mm 587 x 487 mm 11 (± .5) kg
2 x 30m 950 x 820 x 350 mm 750 x 633 mm 15 (± .5) kg
4 x 23m 1291 x 620 x 448 mm 1064 x 440 mm 24 (± .5) kg
4 x 30m 1302 x 785 x 489 mm 1084 x 585 mm 26 (± .5) kg
