Page 7 - FT SAFETY DURABLES
P. 7
TM
SAFETY
DURABLES

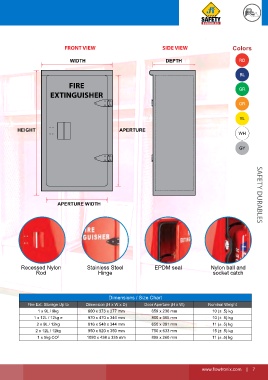

FIRE EXTINGUISHER FRONT VIEW SIDE VIEW Colors
CABINET
WIDTH DEPTH RD
• Specifications & Features: BL
• The quality of workmanship and
finishes are carefully planned and FIRE GR
executed from the initial stage of EXTINGUISHER
preparing the material, fabrication,
up to the surface preparation and OR
powder coating.
• Feature durable, versality, unitized YL
construction for economical solution
• Designed for all types of buildings HEIGHT APERTURE
• Fire extinguisher storage WH
• Material: 3-4 mm nominal thickness
GRP GY
• Door catch: Nylon ball and socket
catch
• Door handle: Recessed Nylon rod
• Hinges: Stainless steel
• Seal: EPDM seal (Ethylene
Propylene Diene Monomer)
• Reinforcement: 100mm Square
pads to back SAFETY DURABLES
• Optional: Cabinet dimensions and
specification can be changed to meet APERTURE WIDTH
your requirements
Recessed Nylon Stainless Steel EPDM seal Nylon ball and
Rod Hinge socket catch
Dimensions / Size Chart
Fire Ext. Storage Up to Dimension (H x W x D) Door Aperture (H x W) Nominal Weight
1 x 9L / 9kg 800 x 373 x 277 mm 659 x 236 mm 10 (± .5) kg
1 x 12L / 12kg e 970 x 470 x 346 mm 800 x 305 mm 10 (± .5) kg
2 x 9L / 12kg 816 x 548 x 344 mm 650 x 391 mm 11 (± .5) kg
2 x 12L / 12kg 950 x 820 x 350 mm 750 x 633 mm 15 (± .5) kg
1 x 5kg CO 2 1080 x 438 x 335 mm 895 x 260 mm 11 (± .5) kg
www.flowtronix.com | 7
