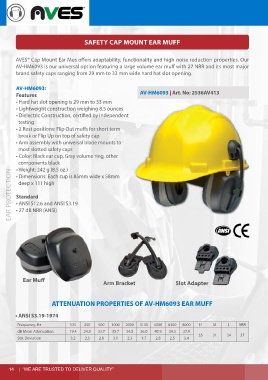

Page 14 - FT EAR PROTECTION

SAFETY CAP MOUNT EAR MUFF

AVES® Cap Mount Ear Mus offers adaptability, functionality and high noise reduction properties. Our
AV-HM6093 is our universal option featuring a large volume ear muff with 27 NRR and its most major
brand safety caps ranging from 29 mm to 33 mm wide hard hat slot opening.

AV-HM6093:
Features AV-HM6093 | Art. No: 2536AV413
• Hard hat slot opening is 29 mm to 33 mm
• Lightweight construction weighing 8.5 ounces
• Dielectric Construction, certified by independent
testing
• 2 Rest positions: Flip Out muffs for short term
break or Flip Up on top of safety cap
• Arm assembly with universal blade mounts to
most slotted safety caps
• Color: Black ear cup, Gray volume ring, other
components black
• Weight: 242 g (8.5 oz.)
EAR PROTECTION deep x 111 high
• Dimensions: Each cup is 85mm wide x 58mm

Standard
• ANSI S12.6 and ANSI S3.19
• 27 dB NRR (ANSI)

Ear Muff Arm Bracket Slot Adapter

ATTENUATION PROPERTIES OF AV-HM6093 EAR MUFF

• ANSI S3.19-1974

Frequency, Hz 125 250 500 1000 2000 3150 4000 6300 8000 H M L NRR
dB Mean Attenuation 19.4 24.5 33.7 35.7 34.5 36.0 40.9 39.3 37.9
35 31 24 27
Std. Deviation 3.2 2.3 2.8 3.0 2.3 1.7 2.8 2.5 3.4

14 | “WE ARE TRUSTED TO DELIVER QUALITY”
