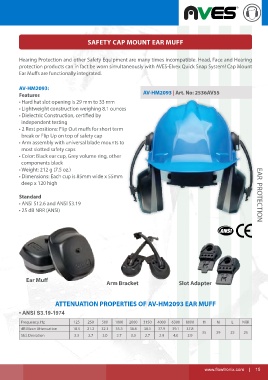

Page 15 - FT EAR PROTECTION

SAFETY CAP MOUNT EAR MUFF

Hearing Protection and other Safety Equipment are many times incompatible. Head, Face and Hearing
protection products can in fact be worn simultaneously with AVES-Elvex Quick Snap System! Cap Mount
Ear Muffs are functionally integrated.

AV-HM2093:
Features AV-HM2093 | Art. No: 2536AV55
• Hard hat slot opening is 29 mm to 33 mm
• Lightweight construction weighing 8.1 ounces
• Dielectric Construction, certified by
independent testing
• 2 Rest positions: Flip Out muffs for short term
break or Flip Up on top of safety cap
• Arm assembly with universal blade mounts to
most slotted safety caps
• Color: Black ear cup, Grey volume ring, other
components black
• Weight: 212 g (7.5 oz.)
• Dimensions: Each cup is 85mm wide x 55mm
deep x 120 high

Standard EAR PROTECTION
• ANSI S12.6 and ANSI S3.19
• 25 dB NRR (ANSI)

Ear Muff Arm Bracket Slot Adapter

ATTENUATION PROPERTIES OF AV-HM2093 EAR MUFF

• ANSI S3.19-1974
Frequency, Hz 125 250 500 1000 2000 3150 4000 6300 8000 H M L NRR
dB Mean Attenuation 18.5 21.2 32.1 35.3 36.6 38.1 37.9 39.1 37.8
35 29 22 25
Std. Deviation 3.3 2.7 3.0 2.7 3.3 2.7 2.9 4.0 2.9

www.flowtronix.com | 15
