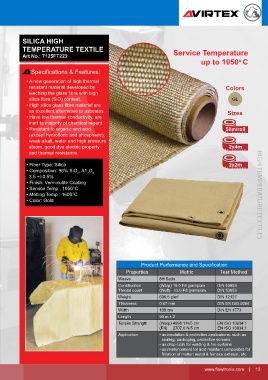

Page 13 - FT HIGH TEMPERATURE TEXTILE

SILICA HIGH SILICA HIGH
TEMPERATURE TEXTILE Service Temperature TEMPERATURE TEXTILE Service Temperature

Art No.: 7125FT198 Art No.: 7125FT222
up to 1050 C up to 1050 C
o
o
Specifications & Features: Specifications & Features:

• Suitable protective textile on various • A new generation of high thermal
applications. Colors resistant material developed by Colors
• Protects against high temperatures leeching the glass fibre with high
• Silica high temperature textile have WH silica fibre (SiO) content. GL
low thermal conductivity and have • High silica glass fibre material are
superb electric insulation properties Sizes an excellent alternative to asbestos Sizes
at high temperatures • Have low thermal conductivity, are
• High resistance to thermal shock inert to majority of chemical regent.
and can be used for a long period of 50m/roll • Resistant to organic and acid 50m/roll
time without changing its properties (except hydrofloric and phospheric),
weak alkali, water and high pressure
2x4m steam, good dye electric property 2x4m
• Fiber Type: Silica and thermal resistance.
• Composition: 96% SiO , A1 O 3
2
2
3.5 +/-0.5% 2x2m • Fiber Type: Silica 2x2m
• Finish: Vinylpolymer - White Wet • Composition: 96% SiO , A1 O 3
2
2
Frayproof Treatment 3.5 +/-0.5%
• Service Temp.: 1050°C • Finish: Vermiculite Coating
• Melting Temp.: 1600°C • Service Temp.: 1050°C
• Color: White • Melting Temp.: 1600°C HIGH TEMPERATURE TEXTILES
• Color: Gold

Product Performance and Specification
Properties Metric Test Method
Weave 8H Satin
Construction (Warp) 19.0 Fd (yarn)/cm DIN 53853
Thread count (Weft) 13.0 Fd (yarn)/cm DIN 53853
Weight 696.5 g/m 2 DIN 12127
Thickness 0.67 mm DIN EN ISO 5084
Width 100 cm DIN EN 1773
Length 50 m ± 2
Tensile Strength (Warp) 4698.1 N/5 cm EN ISO 13934.1
(Fill) 2707.0 N/5 cm EN ISO 13934.1
Application • as insulation & protection applications, such as
sealing, packaging, protective screens
• as drop cloth for welding & fire curtains
• as reinforcement for acid resistant composites for
filtration of molten metal & furnace exhaust, etc.

www.flowtronix.com | 13
