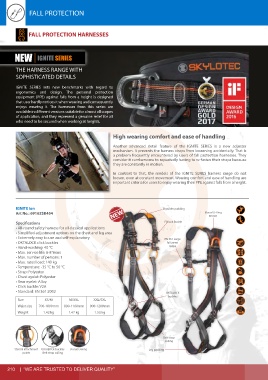

Page 210 - FT SAFETY CATALOG 2017-2018

FALL PROTECTION FALL PROTECTION

FALL PROTECTION HARNESSES

NEW IGNITE SERIES

THE HARNESS RANGE WITH
SOPHISTICATED DETAILS

IGNITE SERIES sets new benchmarks with regard to
ergonomics and design. The personal protection
equipment (PPE) against falls from a height is designed
that user hardly notices it when wearing and consequently
enjoys wearing it. The harnesses from this series are
available in different versions suitable for almost all scopes
of application, and they represent a genuine relief for all
who need to be secured when working at heights.

High wearing comfort and ease of handling

Another advanced detail feature of the IGNITE SERIES is a new adjuster
mechanism. It prevents the harness straps from loosening accidentally. That is
a problem frequently encountered by users of fall protection harnesses. They
consider it cumbersome to repeatedly having to re-fasten their straps because
they are constantly in motion.
In contrast to that, the models of the IGNITE SERIES harness range do not
loosen, even at constant movement. Wearing comfort and ease of handling are
important criteria for users to enjoy wearing their PPE against falls from a height.

IGNITE Ion Shoulder padding
Art No.: 69162SK454 Dorsal D-Ring
EN 361
Specifications Fidlock Buckle
• All-round safety harness for all classical applications
• Simplified adjustment options on the chest and leg area
• Extremely easy to use and self-explanatory EN 361 Large
• OKTALOCK click buckles fall arrest
• Hand-washing: 40 °C loops
• Max. service life: 6-8 Years
• Max. number of persons: 1
• Max. rated load: 140 kg
• Temperature: -35 °C to 50 °C
• Strap: Polyester
• Chest eyelet: Polyester
• Rear eyelet: Alloy
• Click buckle: V2A
• Standard: EN 361:2002 OKTALOCK
buckles
Size XS/M M/XXL XXL/5XL
Waist size 700-1000mm 800-1100mm 900-1200mm
Weight 1.42 kg 1.47 kg 1.53 kg

Belt strap
coiling
Sternal attachment OKTALOCK buckles Dorsal D-Ring Leg padding
points Belt strap coiling

210 | “WE ARE TRUSTED TO DELIVER QUALITY”
