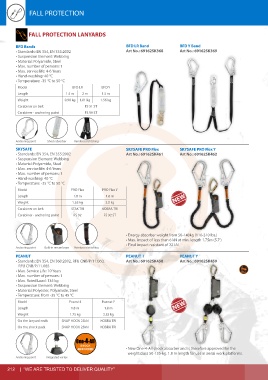

Page 212 - FT SAFETY CATALOG 2017-2018

FALL PROTECTION FALL PROTECTION

FALL PROTECTION LANYARDS

BFD Bands BFD LR Band BFD Y Band
• Standards: EN 354, EN 355:2002 Art No.: 69162SK368 Art No.: 69162SK369
• Suspension Element: Webbing
• Material: Polyamide, Steel
• Max. number of persons: 1
• Max. service life: 4-6 Years
• Hand-washing: 40 °C
• Temperature: -35 °C to 50 °C
Model BFD LR BFD Y
Length 1.5 m 2 m 1.5 m
Weight 0.98 kg 1.01 kg 1.56 kg
Carabiner on belt FS 51 ST
Carabiner - anchoring point FS 90 ST

Anchoring point Shock absorber Reinforced stitching
SKYSAFE SKYSAFE PRO Flex SKYSAFE PRO Flex Y
• Standards: EN 354, EN 355:2002 Art No.: 69162SK461 Art No.: 69162SK462
• Suspension Element: Webbing
• Material: Polyamide, Steel
• Max. service life: 4-6 Years
• Max. number of persons: 1
• Hand-washing: 40 °C
• Temperature: -35 °C to 50 °C
Model PRO Flex PRO Flex Y
Length 1.8 m 1.8 m
Weight 1.55 kg 2.0 kg
Carabiner on belt STAK TRI KOBRA TRI
Carabiner - anchoring point FS 92 FS 92 ST

• Energy absorber weight from 50-140kg (110-310 lbs.)
• Max. impact of less than 6 kN at min. length 1.75m (5.7’)
• Final impact resistant of 22 kN
Anchoring point Built-in rescue loops Reinforced stitching
PEANUT PEANUT I PEANUT Y
• Standards: EN 354, EN 360:2002, RFU CNB/P/11.060, Art No.: 69162SK458 Art No.: 69162SK459
RFU CNB/P/11.085
• Max. Service Life: 10 Years
• Max. number of persons: 1
• Max. Rated Load: 135 kg
• Suspension Element: Webbing
• Material: Polyester, Polyamide, Steel
• Temperature: from -35 °C to 45 °C
Model Peanut I Peanut Y
Length 1.8 m 1.8 m
Weight 1.75 kg 2.52 kg
On the lanyard ends SNAP HOOK 23kN KOBRA TRI
On the shock pack SNAP HOOK 23kN KOBRA TRI

One-4-All
SHOCK
ABSORBER • New One-4-All shock absorber and is therefore approved for the
weight class 50-135-kg. 1.8 m length for use in aerial work platforms.
Anchoring point Integrated vortex
