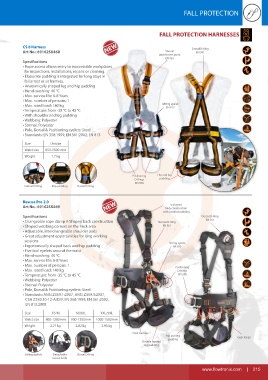

Page 215 - FT SAFETY CATALOG 2017-2018
P. 215
FALL PROTECTION
FALL PROTECTION HARNESSES
CS 8 Harness Dorsal D-Ring
Art No.: 69162SK468 Sternal EN 361
attachment point
EN 361
Specifications
• Rope access allows entry to inaccessible workplaces
for inspections, installations, repairs or cleaning.
• Elaborate padding is integrated for long stays in
fall arrest or sit harness.
• Anatomically shaped leg and hip padding
• Hand-washing: 40 °C
• Max. service life: 6-8 Years
• Max. number of persons: 1
• Max. rated load: 140 kg Sitting eyelet
EN 813
• Temperature: from -35 °C to 45 °C
• With shoulder and leg padding
• Webbing: Polyester
• Sternal: Polyester
• Pole, Dorsal & Positioning eyelets: Steel
• Standards: EN 358:1999, EN 361:2002, EN 813
Size Unisize
Waist size 850-1500 mm
Weight 1.7 kg
Positioning Hip and leg
D-Rings padding
EN 358
Sternal D-Ring Hip padding Dorsal D-Ring
Rescue Pro 2.0
V-shaped
Art No.: 69162SK469 back construction
with comfort padding
Specifications Dorsal D-Ring
• Changeable rope clamp V-Shaped back construction Sternal D-Ring EN 361
• Shaped webbing corners on the neck area EN 361
• Adjustable, interchangeable shoulder pads
• Great adjustment opportunities for long working
sessions Sitting eyelet
• Ergonomically shaped back and hip padding EN 813
• Five tool eyelets around the waist
• Hand-washing: 40 °C
• Max. service life: 6-8 Years
• Max. number of persons: 1 Positioning
• Max. rated load: 140 kg D-Rings
• Temperature: from -35 °C to 45 °C EN 358
• Webbing: Polyester
• Sternal: Polyester
• Pole, Dorsal & Positioning eyelets: Steel
• Standards: ANSI Z359.1:2007, ANSI Z359.3:2007,
CSA Z259.10-12-A/D/P, EN 358:1999, EN 361:2002,
EN 813:2008
Size XS/M M/XXL XXL/5XL
Waist size 800-1200mm 900-1300mm 1000-1500mm
Weight 2.71 kg 2.82 kg 2.93 kg
Click buckles
Hip and leg Gear loops
padding
Double layered
leg padding
Sitting eyelets Detachable Dorsal D-Ring
rescue knife
www.flowtronix.com | 215
