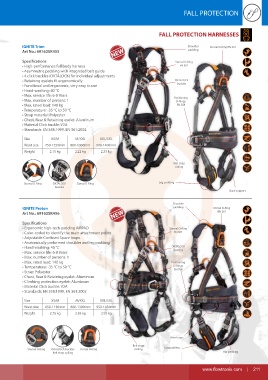

Page 211 - FT SAFETY CATALOG 2017-2018

FALL PROTECTION

FALL PROTECTION HARNESSES

IGNITE Trion Shoulder Dorsal D-Ring EN 361
Art No.: 69162SK455 padding
Specifications Sternal D-Ring
• High-performance full body harness EN 361
• Asymmetric padding with integrated belt guide
• 4 click buckles (OKTALOCK) for individual adjustments
• Retaining eyelets fit ergonomically OKTALOCK
• Functional and ergonomic, very easy to use buckles
• Hand-washing: 40 °C
• Max. service life: 6-8 Years Positioning
• Max. number of persons: 1 D-Rings
• Max. rated load: 140 kg EN 358
• Temperature: -35 °C to 50 °C
• Strap material: Polyester
• Chest, Rear & Retaining eyelet: Aluminum
• Material Click buckle: V2A
• Standards: EN 358:1999, EN 361:2002

Size XS/M M/XXL XXL/5XL
Waist size 750-1250mm 800-1300mm 900-1400mm
Weight 2.15 kg 2.22 kg 2.33 kg

Belt strap
coiling

Sternal D-Ring OKTALOCK Dorsal D-Ring Leg padding
buckles
Back support

Shoulder
IGNITE Proton padding Dorsal D-Ring
Art No.: 69162SK456 EN 361

Specifications
• Ergonomic high-tech padding AIRPAD Sternal D-Ring
• Color-coded to identify the main attachment points EN 361
• Adjustable Confined Space loops
• Anatomically preformed shoulder and leg padding
• Hand-washing: 40 °C OKTALOCK
• Max. service life: 6-8 Years buckles
• Max. number of persons: 1
• Max. rated load: 140 kg Positioning
• Temperature: -35 °C to 50 °C D-Rings
EN 358
• Strap: Polyester
• Chest, Rear & Retaining eyelet: Aluminum
• Climbing protection eyelet: Aluminum
• Material Click buckle: V2A
• Standards: EN 358:1999, EN 361:2002

Size XS/M M/XXL XXL/5XL
Waist size 650-1150mm 800-1300mm 950-1450mm
Weight 2.75 kg 2.83 kg 2.93 kg

Gear loops
Belt strap
Sternal D-Ring OKTALOCK buckles Dorsal D-Ring coiling Leg padding
Belt strap coiling Hip padding

www.flowtronix.com | 211
