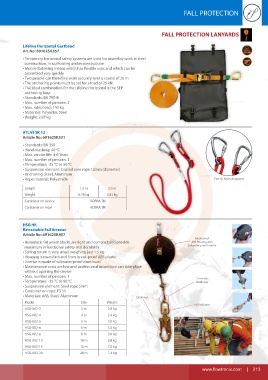

Page 213 - FT SAFETY CATALOG 2017-2018
P. 213

FALL PROTECTION




                                                                         FALL PROTECTION LANYARDS


           Lifeline Horizontal Gurtband
           Art No: 69162SK367

           • Temporary horizontal safety systems are used for assembly work in steel
             construction, in scaffolding and in construction
           • Mobile fastening means which has flexible uses and which can be
             assembled very quickly
           • Two people can therefore work securely over a course of 20 m
           • The anchoring points must be set for a load of 25 kN
           • The ideal combination for the Lifeline Horizontal is the SEP
             anchoring loop
           • Standards: EN 795-B
           • Max. number of persons: 2
           • Max. rated load: 140 kg
           • Materials: Polyester, Steel
           • Weight: 2.87 kg


           ATLAS SK 12
           Article No: 69162SK531
           • Standards: EN 358
           • Hand-washing: 40 °C
           • Max. service life: 4-6 Years
           • Max. number of persons: 1
           • Temperature: -35 °C to 50 °C
           • Suspension element: Coated core rope 12mm (diameter)
           • Anchoring: Steel, Aluminum
           • Rope material: Polyamide                                                           Two (2) Anchoring point

            Length                  1.5 m        2.0 m
            Weight                  0.78 kg     0.83 kg
            Carabiner on device          KOBRA TRI
            Carabiner on rope            KOBRA TRI



           HSG HK
           Retractable Fall Arrester
           Article No: 69162SK457
                                                                                        Break proof
           • Automatic fall arrest blocks are light and compact and provide           ABS housing with
             maximum in functional safety and durability                            Saltwater-proof interior
           • Spring return is very small, weighing just 1.5 kg
           • Housing is manufactured from break-proof ABS plastic
           • Interior is made of saltwater-proof aluminum
           • Maintenance costs are low and professional inspection can take place
             without opening the device
           • Max. number of persons: 1
           • Temperature: -35 °C to 50 °C                                               5 mm dia
                                                                                        steel rope
           • Suspension element: Steel rope 5mm
           • Carabiner on rope: FS 51
           • Materials: ABS, Steel, Aluminum                 Carabiner
            Model                    Size       Weight
                                                                                       Fall indicator
            HSG-002-3                3 m         2.8 kg
            HSG-002-4                4 m         2.9 kg
            HSG-002-5                5 m         3.0 kg
            HSG-002-6                6 m         3.4 kg
            HSG-002-8                8 m         3.6 kg
            HSG-002-10               10 m        3.8 kg
            HSG-002-15               15 m        7.0 kg
            HSG-002-20               20 m        7.4 kg


                                                                                                  www.flowtronix.com    |    213
