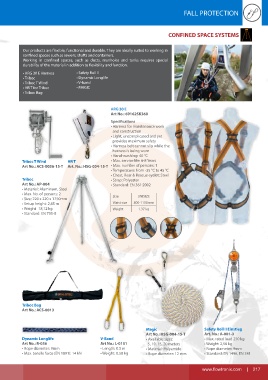

Page 217 - FT SAFETY CATALOG 2017-2018

FALL PROTECTION

CONFINED SPACE SYSTEMS

Our products are flexible, functional and durable. They are ideally suited to working in
confined spaces such as sewers, shafts and containers.
Working in confined spaces, such as ducts, manholes and tanks requires special
durability of the material in addition to flexibility and function.

• ARG 30 E Harness • Safety Roll II
• Triboc • Dynamic Longlife
• Triboc T Wind • V-band
• HR T for Triboc • MAGIC
• Triboc Bag

ARG 30 E
Art No.: 69162SK360
Specifications
• Harness for maintenance work
and construction
• Light, uncomplicated and yet
provides maximum safety
• Harness belt cannot slip while the
harness is being worn
• Hand-washing: 40 °C
Triboc T Wind HR T • Max. service life: 6-8 Years
Art No.: ACS-0036-15-T Art. No.: HSG-004-15-T • Max. number of persons: 1
• Temperature: from -35 °C to 45 °C
• Chest, Rear & Rescue eyelet: Steel
Triboc • Strap: Polyester
Art No.: AP-004 • Standard: EN 361:2002
• Material: Aluminum, Steel
• Max. No. of persons: 2
• Size: 220 x 220 x 1750mm Size UNISIZE
• Setup height: 2,45 m Waist size 800-1100mm
• Weight 18,12 kg Weight 1.37 kg
• Standard: EN 795-B

Triboc Bag
Art No.: ACS-0013

Magic Safety Roll II Einstieg
Art No.: HSG-004-15-T Art. No.: A-001-3
Dynamic Longlife V-Band • Available sizes: • Max. rated load 250 kg
Art No.: R-056 Art No.: L-0151 5, 10, 15, 20 meters • Weight: 2,56 kg
• Rope diameter: 9mm • Length: 0.5 m • Material: Polyamide • Rope diameter: 9mm
• Max. tensile force (EN 1891): 14 kN • Weight: 0.58 kg • Rope diameter: 12 mm • Standard: EN 1496, EN 341

www.flowtronix.com | 217
