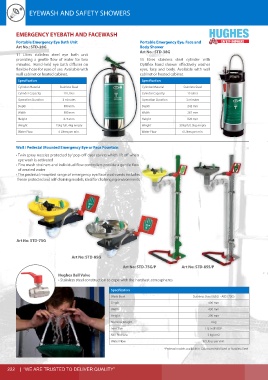

Page 222 - FT SAFETY CATALOG 2017-2018

EYEWASH AND SAFETY SHOWERS EYEWASH AND SAFETY SHOWERS

EMERGENCY EYEBATH AND FACEWASH

Portable Emergency Eye Bath Unit Portable Emergency Eye, Face and
Art No.: STD-28G Body Shower
Art No.: STD-38G
11 Litres stainless steel eye bath unit
providing a gentle flow of water for two 15 litres stainless steel cylinder with
minutes. Hand-held eye bath diffuser on Optiflex hand shower effectively washes
flexible hose for ease of use. Available with eyes, face and body. Available with wall
wall cabinet or heated cabinet. cabinet or heated cabinet.
Specification Specification
Cylinder Material Stainless Steel Cylinder Material Stainless Steel
Cylinder Capacity 11 Litres Cylinder Capacity 15 Litres
Operation Duration 2 minutes Operation Duration 3 minutes
Depth 180 mm Depth 242 mm
Width 180 mm Width 267 mm
Height 675 mm Height 820 mm
Weight 15kg full, 4kg empty Weight 20kg full, 5kg empty
Water Flow 6 Litres per min. Water Flow 6 Litres per min.

Wall / Pedestal Mounted Emergency Eye or Face Fountain
• Twin spray nozzles protected by ‘pop-off’ dust covers which lift off when
eye wash is activated
• Fine mesh strainers and individual flow controllers provide a gentle flow
of aerated water
• The pedestal mounted range of emergency eye/face wash units includes
freeze protected and self-draining models, ideal for challenging environments

Art No: STD-75G

Art No: STD-85G

Art No: STD-75G/P Art No: STD-85S/P
Hughes Ball Valve
• Stainless steel construction to cope with the harshest atmospheres

Specification
Wash Bowl Stainless Steel (85G) - ABS (75G)
Depth 400 mm
Width 430 mm
Height 290 mm
Nominal Weight 4 kg
Inlet Size 1/2 in (F) BSP
Min Pressure 2 kg/cm2
Water Flow 12 Litres per min.
*Pedestal models available in Galvanized Mild Steel or Stainless Steel

222 | “WE ARE TRUSTED TO DELIVER QUALITY”
