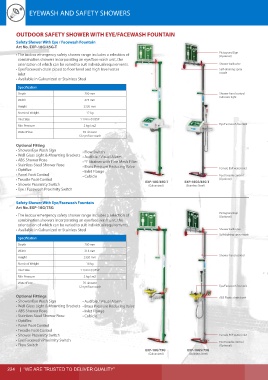

Page 224 - FT SAFETY CATALOG 2017-2018

EYEWASH AND SAFETY SHOWERS EYEWASH AND SAFETY SHOWERS

OUTDOOR SAFETY SHOWER WITH EYE/FACEWASH FOUNTAIN

Safety Shower With Eye / Facewash Fountain
Art No. EXP-18G/45G-T
• The indoor emergency safety shower range includes a selection of Pictogram/Sign
(Optional)
combination showers incorporating an eye/face wash unit, the
orientation of which can be varied to suit individual requirements. Shower ball valve
• Eye/Facewash drain piped to floor level and high level water Self-draining spray
inlet nozzle
• Available in Galvanized or Stainless Steel

Specification
Depth 750 mm Shower hand control
Indicator light
Width 475 mm
Height 2320 mm
Nominal Weight 17 kg
Inlet Size 1 1/4 in (F) BSP
Min Pressure 2 kg/cm2 Eye/Facewash fountain
Water Flow 76 shower
12 eye/face wash

Optional Fitting
• Shower/Eye Wash Sign • Flow Switch
• Well Glass Light & Mounting Brackets • Audible / Visual Alarm
• ABS Shower Rose • ‘Y’ Strainer with Fine Mesh Filter
• Stainless Steel Shower Rose • Brass Pressure Reducing Valve
• Optiflex • Inlet Flange Female BSP water inlet
• Panel Foot Control • Cubicle Foot treadle control
• Treadle Foot Control (Optional)
• Shower Proximity Switch EXP-18G/45G-T EXP-18GS/45G-T
(Galvanized) (Stainless Steel)
• Eye / Facewash Proximity Switch

Safety Shower With Eye/Facewash Fountain
Art No. EXP-18G/75G
• The indoor emergency safety shower range includes a selection of Pictogram/Sign
(Optional)
combination showers incorporating an eye/face wash unit, the
orientation of which can be varied to suit individual requirements.
• Available in Galvanized or Stainless Steel Shower ball valve

Self-draining spray nozzle
Specification
Depth 750 mm
Width 314 mm
Shower hand control
Height 2320 mm
Nominal Weight 16 kg
Inlet Size 1 1/4 in (F) BSP
Min Pressure 2 kg/cm2
Water Flow 76 shower
12 eye/face wash Eye/Facewash fountain
Optional Fittings ABS Plastic drain bowl
• Shower/Eye Wash Sign • Audible / Visual Alarm
• Well Glass Light & Mounting Brackets • Brass Pressure Reducing Valve
• ABS Shower Rose • Inlet Flange
• Stainless Steel Shower Rose • Cubicle
• Optiflex
• Panel Foot Control
• Treadle Foot Control
• Shower Proximity Switch Female BSP water inlet
• Eye/Facewash Proximity Switch Foot treadle control
• Flow Switch (Optional)
EXP-18G/75G EXP-18GS/75G
(Galvanized) (Stainless Steel)
