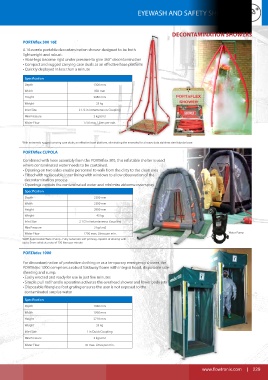

Page 229 - FT SAFETY CATALOG 2017-2018

EYEWASH AND SAFETY SHOWERS

DECONTAMINATION SHOWERS

PORTAflex 300 16E
A 16 nozzle portable decontamination shower designed to be both
lightweight and robust.
• Hose legs become rigid under pressure to give 360° decontamination
• Compact and rugged carrying case duals as an effective base platform
• Quickly deployed in less than a minute

Specification
Depth 1300 mm
Width 850 mm
Height 2480 mm
Weight 25 kg
Inlet Size 2 1/2 in instantaneous Coupling
Min Pressure 3 kg/cm2
Water Flow 1750 max. Litres per min.

With extremely rugged carrying case duals, an effective base platform, eliminating the necessity for a heavy duty stainless steel tubular base.
PORTAflex CUPOLA

Combined with hose assembly from the PORTAflex 300, this inflatable shelter is used
where contaminated water needs to be contained.
• Opening on two sides enable personnel to walk from the dirty to the clean area
• Fitted with replaceable inner lining with windows to allow observation of the
decontamination process
• Openings contain the contaminated water and minimize airborne over-spray
Specification
Depth 2200 mm
Width 2200 mm
Height 2900 mm
Weight 45 kg
Inlet Size 2 1/2 in instantaneous Coupling
Min Pressure 3 kg/cm2
Water Flow 1750 max. Litres per min. Water Pump
WWP Submersible Water Pump - Fully automatic self priming, capable of dealing with
up to 5mm solids at a rate of 150 litres per minute
PORTAdec 1000

For decontamination of protective clothing or as a temporary emergency shower, the
PORTAdec 1000 comprises a robust foldaway frame with integral hood, disposable side
sheeting and sump.
• Easily erected and ready for use in just five minutes
• Simple pull rod handle operation activates the overhead shower and lower body jets
• Disposable fiberglass foot grating ensures the user is not exposed to the
contaminated surplus water
Specification
Depth 1060 mm
Width 1060 mm
Height 2710 mm
Weight 35 kg
Inlet Size 1 in Quick Coupling
Min Pressure 3 kg/cm2
Water Flow 30 max. Litres per min.

www.flowtronix.com | 229
