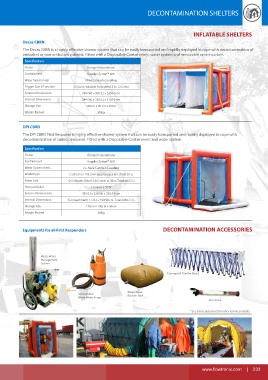

Page 233 - FT SAFETY CATALOG 2017-2018

DECONTAMINATION SHELTERS

INFLATABLE SHELTERS

Decas CBRN
The Decas CBRN is a highly effective shower system that can be easily transported and rapidly deployed to cope with decontamination of
ambulant or non-ambulant patients. Fitted with a Disposable Containment, water system and removable centre curtain.
Specification
Frame Orange Polyurethane
Containment Kappler Zytron™ 600
Water System Inlet Male Camlock Coupling
Trigger Gun 6 Function 2 x Guns, Variable Flow rate 0.5 to 12 L/min
External Dimensions 288 (W) x 300 (L) x 235(H) cm
Internal Dimensions 244 (W) x 256 (L) x 215(H) cm
Storage Size 150cm x 90 cm x 40cm
Weight Packed 39 kg

DPI CBRN
The DPI CBRN First Response is highly effective shower system that can be easily transported and rapidly deployed to cope with
decontamination of suited personnel. Fitted with a Disposable Containment and water system.
Specification
Frame Orange Polyurethane
Containment Kappler Zytron™ 600
Water System Inlets 2 x Male Camlock Coupling
Wash Brush 2 x Brushes 10 L/min (approx) @ 3 Bar (Total 20 L)
Water Jets 12 x Nozzles (Blue) 3.86 L/min @ 3Bar (Total 46.32 L)
Pressure Relief 1 x valve 2.5 PSI
External Dimensions 395 (L) x 225(W) x 235 (H) cm
Internal Dimensions (Compartment) 177(L) x 190(W)cm, Total 346(L) cm
Storage Size 130cm x 100cm x 40cm
Weight Packed 38 kg

Equipments for all First Responders DECONTAMINATION ACCESSORIES

Waste Water
Management
System

Conveyor & Transfer Board

Waste Water
Submersible Bladder Tank
Waste Water Pump
Slam Tube

*See article data sheet for other technical details.

Conveyor & Transfer
Board

www.flowtronix.com | 233
