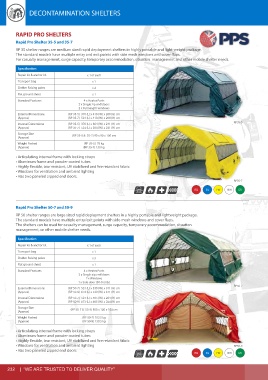

Page 232 - FT SAFETY CATALOG 2017-2018

DECONTAMINATION SHELTERS DECONTAMINATION SHELTERS

RAPID PRO SHELTERS

Rapid Pro Shelter 35-5 and 35-7
RP 35 shelter ranges are medium sized rapid deployment shelters in highly portable and light-weight package.
The standard models have multiple entry and exit points with side mesh windows and cover flaps.
For casualty management, surge capacity, temporary accommodation, situation management and other mobile shelter needs.
Specification
Repair kit & anchor kit x 1 of each
Transport bag x 1
Shelter Raising poles x 2
Flat ground sheet x 1
Standard Features 4 x Heater Ports
2 x Single zip end doors
2 x Full length windows
External Dimensions (RP 35-5) 376 (L) x 418 (W) x 268 (H) cm
(Approx) (RP 35-7) 524 (L) x 418 (W) x 268 (H) cm
Internal Dimensions (RP 35-5) 376 (L) x 364 (W) x 241 (H) cm RP35-5
(Approx) (RP 35-7) 524 (L) x 364 (W) x 241 (H) cm
Storage Size (RP 35-5 & 35-7) 90 x 90 x 100 cm
(Approx)
Weight Packed (RP 35-5 ) 78 kg
(Approx) (RP 35-7) 130 kg

• Articulating internal frame with locking straps
• Aluminum frame and powder coated tubes
• Highly flexible, tear resistant, UV stabilized and fire retardant fabric
• Windows for ventilation and ambient lighting
• Has two paneled zipped end doors.
RP35-7
RD BL YW WH GR

Rapid Pro Shelter 50-7 and 50-9
RP 50 shelter ranges are large sized rapid deployment shelters in a highly portable and lightweight package.
The standard models have multiple entry/exit points with side mesh windows and cover flaps.
The shelters can be used for casualty management, surge capacity, temporary accommodation, situation
management, or other mobile shelter needs.

Specification
Repair kit & anchor kit x 1 of each
Transport bag x 1
Shelter Raising poles x 3
Flat ground sheet x 1
Standard Features 4 x Heater Ports
2 x Single zip end doors
2 x Windows
1 x Side door (50-9 only)
RP50-7
External Dimensions (RP 50-7) 524 (L) x 539 (W) x 311 (H) cm
(Approx) (RP 50-9) 673 (L) x 539 (W) x 311 (H) cm
Internal Dimensions (RP 50-7) 524 (L) x 485 (W) x 284 (H) cm
(Approx) (RP 50-9) 673 (L) x 485 (W) x 284 (H) cm
Storage Size (RP 50-7 & 50-9) 100 x 100 x 100 cm
(Approx)
Weight Packed (RP 50-7) 103.5 kg
(Approx) (RP 50-9) 130.5 kg

• Articulating internal frame with locking straps
• Aluminum frame and powder coated tubes
• Highly flexible, tear resistant, UV stabilized and fire retardant fabric
• Windows for ventilation and ambient lighting RP50-9
• Has two paneled zipped end doors
RD BL YW WH GR

232 | “WE ARE TRUSTED TO DELIVER QUALITY”
