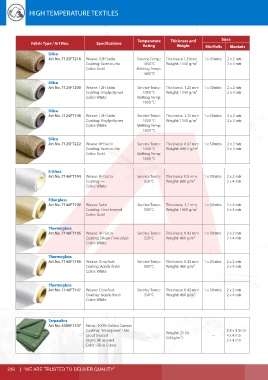

Page 236 - FT SAFETY CATALOG 2017-2018

HIGH TEMPERATURE TEXTILES HIGH TEMPERATURE TEXTILES

Temperature Thickness and Sizes
Fabric Type / Art Nos. Specifications
Rating Weight Mtr/Rolls Blankets
Silica
Art No. 7125FT218 Weave: 12H Satin Service Temp.: Thickness:1.25mm 1 x 45mtrs 2 x 2 mtr
Coating: Vermiculite 1050°C Weight: 1140 g/m² 2 x 4 mtr
Color: Gold Melting Temp.:
1600°C
Silica
Art No. 7125FT200 Weave: 12H Satin Service Temp: Thickness: 1.25 mm 1 x 50mtrs 2 x 2 mtr
Coating: Vinylpolymer 1050 °C Weight: 1140 g/m² 2 x 4 mtr
Color: White Melting Temp:
1600 °C
Silica
Art No. 7125FT198 Weave: 12H Satin Service Temp: Thickness: 1.25 mm 1 x 50mtrs 2 x 2 mtr
Coating: Vinylpolymer 1050 °C Weight: 1140 g/m² 2 x 4 mtr
Color: White Melting Temp:
1600 °C

Silica
Art No. 7125FT222 Weave: 8H Satin Service Temp: Thickness: 0.67 mm 1 x 50mtrs 2 x 2 mtr
Coating: Vermiculite 1050 °C Weight: 696.5 g/m² 2 x 4 mtr
Color: Gold Melting Temp:
1600 °C

E-Glass
Art No. 7146FT194 Weave: 8H Satin Service Temp: Thickness: 0.8 mm 1 x 50mtrs 2 x 2 mtr
Coating: --- 550°C Weight: 880 g/m² 2 x 4 mtr
Color: White

Fiberglass
Art No. 7146FT199 Weave: Satin Service Temp: Thickness: 1.7 mm 1 x 50mtrs 2 x 2 mtr
Coating: Heat treated 550°C Weight: 1600 g/m² 2 x 4 mtr
Color: Gold

Thermoglass
Art No. 7146FT195 Weave: 4H Satin Service Temp: Thickness: 0.43 mm 1 x 50mtrs 2 x 2 mtr
Coating: Silicon (Two sides) 550°C Weight: 460 g/m² 2 x 4 mtr
Color: White

Thermoglass
Art No. 7146FT196 Weave: Crowfoot Service Temp: Thickness: 0.43 mm 1 x 25mtrs 2 x 2 mtr
Coating: Acrylic finish 550°C Weight: 460 g/m² 2 x 4 mtr
Color: White

Thermoglass
Art No. 7146FT197 Weave: Crowfoot Service Temp: Thickness: 0.43 mm 1 x 50mtrs 2 x 2 mtr
Coating: Acrylic finish 550°C Weight: 460 g/m² 2 x 4 mtr
Color: White

Tarpaulins
Art No. 3389FT107 Fabric: 100% Cotton Canvas
Coating: Waterproof / Rot Weight: 21 Oz 5.5 x 5.5mtr
proof treated --- (595g/m²) --- 4 x 4 mtr
Seam: All around 2 x 4 mtr
Color: Olive Green

236 | “WE ARE TRUSTED TO DELIVER QUALITY”
