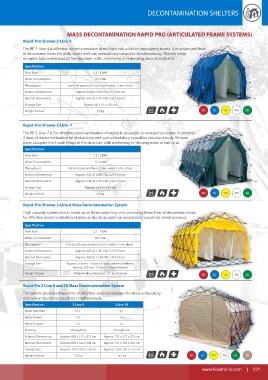

Page 231 - FT SAFETY CATALOG 2017-2018

DECONTAMINATION SHELTERS

MASS DECONTAMINATION RAPID PRO (ARTICULATED FRAME SYSTEMS)

Rapid Pro Shower 2-Line-4
The RP 2-Line-4 is effective decontamination of multiple casualties or emergency teams. It provides two lines
of decontamination for ambulatory and non-ambulatory casualties simultaneously. Shower basin
occupies two centre bays of the structure, with undressing or redressing areas at each end.
Specification
Flow Rate 2.5 - 3 BAR
Water Consumption 12 L/min
Throughput Up to 40 persons/hr (on 2 min. wash, 1 min. rinse)
External Dimensions Approx: 304(L) x 282 (W) x 274 (H) cm
Internal Dimensions Approx: 304 (L) x 231 (W) x 221 (H) cm
Storage Size Approx: 60 x 70 x 100 cm
Weight Packed 77 kg RD BL YW WH GR

Rapid Pro Shower 2-Line- 7
The RP 2-Line-7 is for effective decontamination of multiple casualties or emergency teams. It provides
2 lines of decontamination for ambulatory and non-ambulatory casualties simultaneously. Shower
basin occupies the 3 centre bays of the structure, with undressing or dressing areas at each end.
Specification
Flow Rate 2.5 - 3 BAR
Water Consumption 12 L/min
Throughput Up to 80 persons/hour (2 min. wash, 1 min. rinse)
External Dimensions Approx: 528 (L) x 282 (W) x 274 (H) cm
Internal Dimensions Approx: 528 (L) x 231 (W) x 221 (H) cm
Storage Size Approx: 53 x 45 x 85 cm
Weight Packed 65 kg RD BL YW WH GR

Rapid Pro Shower 3-Line-6 Mass Decontamination System
High capacity system that is made up of three adjoining units providing three lines of decontamination
for effective decontamination of mass ambulatory and non-ambulatory casualties simultaneously.
Specification
Flow Rate 2.5 - 3 BAR
Water Consumption 78 L/min
Throughput Up to 200 persons/hour (2 min. wash, 1 min. rinse)
External Dimensions Approx: 449 (L) x 381 (W) x 273 (H) cm
Internal Dimensions Approx: 449 (L) x 326 (W) x 245 (H) cm
Storage Size Approx: 110cm x 110cm x 110cm (Undress/Redress)
Approx: 127cm x 115cm x 115cm (Shower)
Weight Packed 99 kg (Undress/Redress), 117 kg (Shower) RD BL YW WH GR

Rapid Pro 3 Line 9 and 10 Mass Decontamination System
The system provides three lines of effective decontamination for mass ambulatory
and non-ambulatory casualties simultaneously.
Specification 3 Line 9 3 Line 10
Water Manifold x 1 x 1
Water Booms X 2 x 3
Hand Sprayers x 2 x 2
Flooring Throughout Throughout
External Dimensions Approx: 668 x 377 x 273 cm Approx: 731 x 377 x 273 cm
Internal Dimensions Approx: 668 x 322 x 245 cm Approx: 731 x 322 x 245 cm
Storage Size Approx: 110 x 100 x 110 cm Approx: 120 x 120 x 117 cm
Weight Packed 123 kg 141 kg RD BL YW WH GR TN
