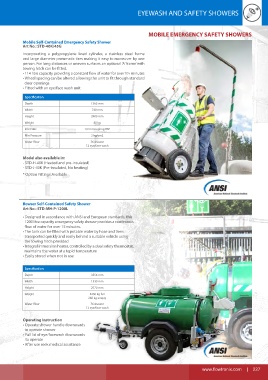

Page 227 - FT SAFETY CATALOG 2017-2018

EYEWASH AND SAFETY SHOWERS

MOBILE EMERGENCY SAFETY SHOWERS

Mobile Self-Contained Emergency Safety Shower
Art No.: STD-40K/45G
Incorporating a polypropylene lined cylinder, a stainless steel frame
and large diameter pneumatic tires making it easy to maneuver by one
person. For long distances or uneven surfaces an optional ‘A’ frame with
towing hitch can be fitted.
• 114 litre capacity providing a constant flow of water for over 1½ minutes
• Wheel spacing can be altered allowing the unit to fit through standard
door openings
• Fitted with an eye/face wash unit
Specification
Depth 1365 mm
Width 740 mm
Height 2400 mm
Weight 80 kg
Inlet Size 1/2 in Coupling BSP
Min Pressure 2 kg/cm2
Water Flow 76 shower
12 eye/face wash

Model also available in:
- STD-H-40K (Heated and pre-insulated)
- STD-J-40K (Pre-insulated, No heating)
* Option Fittings Available

Bowser Self-Contained Safety Shower
Art No.: STD-MH-P-1200L
• Designed in accordance with ANSI and European standards, this
1200 litre capacity emergency safety shower provides a continuous
flow of water for over 15 minutes.
• The tank can be filled with potable water by hose and then
transported quickly and easily behind a suitable vehicle using
the towing hitch provided
• Integral immersion heater, controlled by a dual safety thermostat,
maintains the water at a tepid temperature
• Easily stored when not in use

Specification
Depth 3556 mm
Width 1530 mm
Height 2770 mm
Weight 1460 kg full
260 kg empty
Water Flow 76 shower
12 eye/face wash

Operating Instruction
• Operate shower handle downwards
to operate shower
• Pull lid of eye/facewash downwards
to operate
• After use seek medical assistance

www.flowtronix.com | 227
