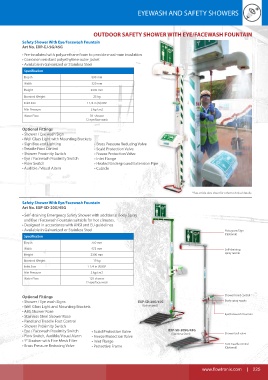

P. 225

EYEWASH AND SAFETY SHOWERS




                                           OUTDOOR SAFETY SHOWER WITH EYE/FACEWASH FOUNTAIN

           Safety Shower With Eye/Facewash Fountain
           Art No. EXP-EJ-5G/45G
           • Pre-insulated with polyurethane foam to provide maximum insulation
           • Corrosion resistant polyethylene outer jacket
           • Available in Galvanized or Stainless Steel
            Specification
            Depth                         890 mm
            Width                         320 mm
            Height                       2330 mm
            Nominal Weight                 25 kg
            Inlet Size                  1 1/4 in (M) BSP
            Min Pressure                 2 kg/cm2
            Water Flow                   76  shower
                                       12 eye/face wash
           Optional Fittings
           • Shower / Eye wash Sign
           • Well Glass Light with Mounting Brackets
           • Sign Box and Lighting         • Brass Pressure Reducing Valve
           • Treadle Foot Control          • Scald Protection Valve
           • Shower Proximity Switch       • Freeze Protection Valve
           • Eye / Facewash Proximity Switch  • Inlet Flange
           • Flow Switch                   • Heated Underground Extension Pipe
           • Audible / Visual Alarm        • Cubicle





                                                                                      *See article data sheet for other technical details.
           Safety Shower With Eye/Facewash Fountain
           Art No. EXP-SD-20G/45G
           • Self-draining Emergency Safety Shower with additional Body Spray
             and Eye / Facewash Fountain suitable for hot climates.
           • Designed in accordance with ANSI and EU guidelines
           • Available in Galvanized or Stainless Steel                                              Pictogram/Sign
                                                                                                     (Optional)
            Specification
            Depth                         750 mm
            Width                         475 mm                                                     Self-draining
            Height                       2300 mm                                                     spray nozzle
            Nominal Weight                19 kg
            Inlet Size                  1 1/4 in (F)BSP
            Min Pressure                 2 kg/cm2
            Water Flow                   125 shower
                                       12 eye/face wash

           Optional Fittings                                                                         Shower hand control
           • Shower / Eye wash Signs                          EXP-SD-20G/45G                         Body spray nozzle
           • Well Glass Light and Mounting Brackets                  (Galvanized)
           • ABS Shower Rose
           • Stainless Steel Shower Rose                                                             Eye/Facewash fountain
           • Panel and Treadle Foot Control
           • Shower Proximity Switch
           • Eye / Facewash Proximity Switch   • Scald Protection Valve      EXP-SD-20SG/45G
           • Flow Switch, Audible/Visual Alarm  • Freeze Protection Valve         (Stainless Steel)  Shower ball valve
           • ‘Y’ Strainer with Fine Mesh Filter  • Inlet Flange
           • Brass Pressure Reducing Valve  • Protective Frame                                       Foot treadle control
                                                                                                     (Optional)



                                                                                                  www.flowtronix.com    |    225
