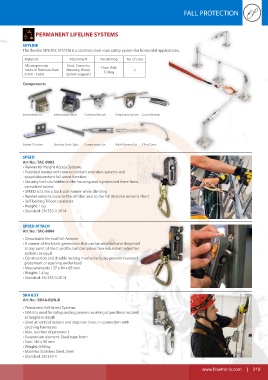

Page 219 - FT SAFETY CATALOG 2017-2018
P. 219

FALL PROTECTION




                 PERMANENT LIFELINE SYSTEMS


           SKYLINE
           The flexible SKYLINE SYSTEM is a stainless steel rope safety system for horizontal applications.

            Materials           Attachment    Positioning  No. of User
            All components     Steel, Concrete,  Floor, Wall,
            made of Stainless Steel  Masonry, Wood,  Ceiling  2
            8 mm - Cable      System supports
           Components







           Intermediate Fix  Intermediate Move  Overhead Runner  Detachable Runner  Curve Element







           Skyline T-Anchor  Stainless Steel Cable  Compensator Set  Multi-Element Set  3 Part Curve

           SPEED
           Art No.: TAC-0002
           • Runner for Height Access Systems
           • Patented runner with two redundant retention systems and
             speed-dependent fall arrest function
           • Security bolt sits hidden in the housing and is protected there from
             unwanted access
           • SPEED acts like a back-pull runner while climbing
           • Runner remains close to the climber and so the fall distance remains short
           • Self-bolting Trilock carabiner
           • Weight: 1 kg
           • Standard: EN 353-1:2014


           SPEED ATTACH
           Art No.: TAC-0004
           • Detachable Vertical Fall-Arrester
           • A runner of the latest generation that can be attached and detached
             at any point of the C-profile, but comprises two redundant retention
             systems as usual
           • Construction and double locking mechanism also prevent reversed
             placement or opening under load
           • Measurements 137 x 44 x 85 mm
           • Weight: 1.4 kg
           • Standard: EN 353-1:2014



           SKA 8 ST
           Art No.: SKA8-RUN-B
           • Permanent Fall Arrest Systems
           • SKA 8 is used for safeguarding persons working at positions located
             at height or depth
           • Used at vertical ladders and step iron lines, in connection with
             catching harnesses
           • Max. number of persons: 1
           • Suspension element: Steel rope 8mm
           • Size: 140 x 90 mm
           • Weight: 0,94 kg
           • Material: Stainless Steel, Steel
           • Standard: EN 353-1

                                                                                                  www.flowtronix.com    |    219
